Prometheus is an open-source monitoring and alerting system built for reliability, scalability, and flexibility — particularly in cloud-native and microservices environments such as those orchestrated by Kubernetes. It is part of the Cloud Native Computing Foundation (CNCF) ecosystem and is widely used for metrics-based observability.

Below is a detailed description of the Prometheus architecture, components, data model, alerting system, and integrations — especially how it is used for event monitoring and alerting.

1. Core Concept: Metrics-Based Monitoring

Prometheus focuses on metrics, not logs or traces.
Metrics are time-stamped numerical data that describe the state of systems over time — e.g.:

CPU utilization (node_cpu_seconds_total)
HTTP request latency (http_request_duration_seconds)
Number of running pods (kube_pod_running_total)

Each metric has:

Name: e.g. http_requests_total
Labels (key-value pairs): e.g. method="GET", status="200", instance="node1"

This structure forms a multi-dimensional time series.

2. Prometheus Architecture Overview

Prometheus is composed of several components working together:

Component	Description
Prometheus Server	Core component responsible for scraping metrics, storing time-series data, and evaluating alert rules.
Exporters	Agents or services that expose metrics in Prometheus format (e.g. `node_exporter`, `blackbox_exporter`).
Pushgateway	Optional component for short-lived jobs that cannot be scraped directly (e.g. batch jobs).
Alertmanager	Handles alerts sent by Prometheus — deduplicates, groups, routes, and sends notifications (e.g. Slack, PagerDuty, email).
Service Discovery	Automatically discovers targets via Kubernetes, Consul, EC2, etc.
Visualization Tools	Usually Grafana, which queries Prometheus via PromQL for dashboards.

3. How Prometheus Collects Data (Pull Model)

Prometheus pulls metrics from monitored targets via HTTP on a configurable interval.

Each target exposes a /metrics endpoint returning plaintext data like:

# HELP http_requests_total The total number of HTTP requests
# TYPE http_requests_total counter
http_requests_total{method="GET", status="200"} 12345
http_requests_total{method="POST", status="500"} 42

Prometheus scrapes these endpoints at a defined interval (e.g. every 15 seconds) and stores the resulting metrics in its time-series database (TSDB).

This “pull-based model” ensures:

Each Prometheus instance is autonomous
Simpler debugging (you can visit /metrics directly)
Better scalability and resilience (no centralized push bottleneck)

4. PromQL: The Query Language

PromQL (Prometheus Query Language) allows you to:

Select and aggregate metrics
Compute derived metrics
Filter by labels
Generate expressions for alerting or visualization

Example queries:

# Average CPU usage per node
avg(rate(node_cpu_seconds_total{mode!="idle"}[5m])) by (instance)

# Error rate for HTTP requests
rate(http_requests_total{status=~"5.."}[5m])

# Alert if high latency
histogram_quantile(0.95, rate(http_request_duration_seconds_bucket[5m]))

5. Alerting in Prometheus

Prometheus has a two-stage alerting pipeline:

(a) Alerting Rules

Defined in YAML, Prometheus periodically evaluates alert expressions (PromQL queries) and triggers alerts when conditions are met.

Example (alerts.yml):

groups:
  - name: instance-health
    rules:
      - alert: InstanceDown
        expr: up == 0
        for: 2m
        labels:
          severity: critical
        annotations:
          summary: "Instance {{ $labels.instance }} is down"
          description: "No data received from {{ $labels.instance }} for 2 minutes."

expr — PromQL expression evaluated on schedule
for — Duration the condition must be true before firing
labels — Metadata for routing and severity
annotations — Human-readable info for notifications

(b) Alertmanager

When alerts fire, Prometheus sends them to the Alertmanager via HTTP.

The Alertmanager:

Deduplicates repeating alerts
Groups related alerts (e.g., multiple instances down in one alert)
Silences alerts temporarily
Routes alerts to destinations (email, Slack, PagerDuty, Opsgenie, etc.)

Example Alertmanager config (alertmanager.yml):

route:
  receiver: "slack_alerts"
  group_by: ["alertname", "cluster"]

receivers:
  - name: "slack_alerts"
    slack_configs:
      - channel: "#ops-alerts"
        send_resolved: true

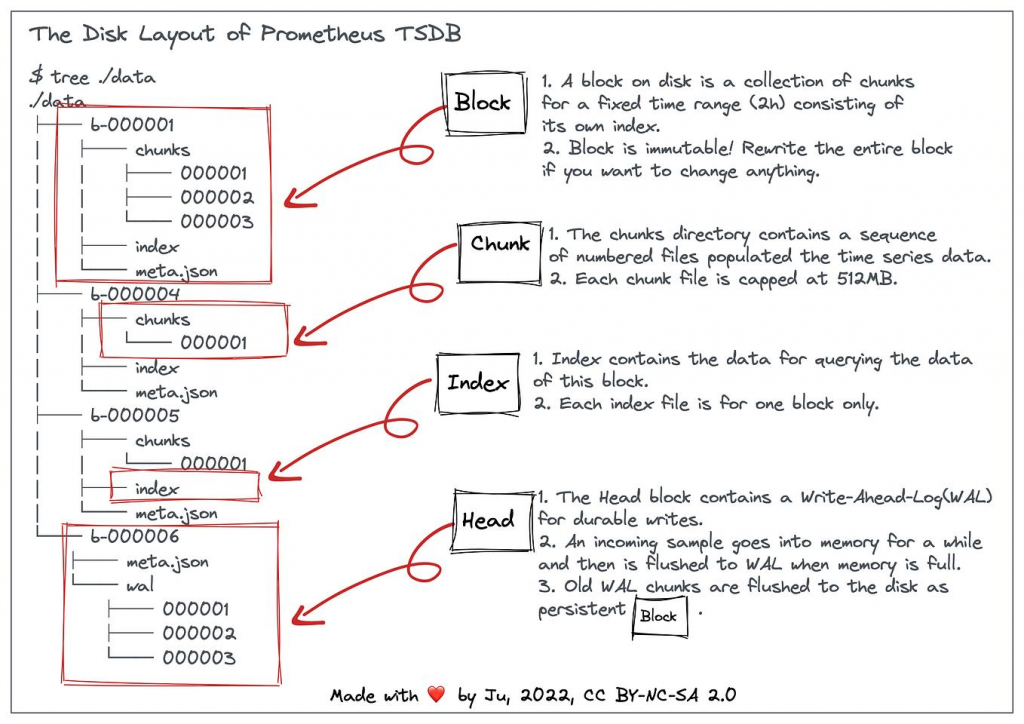

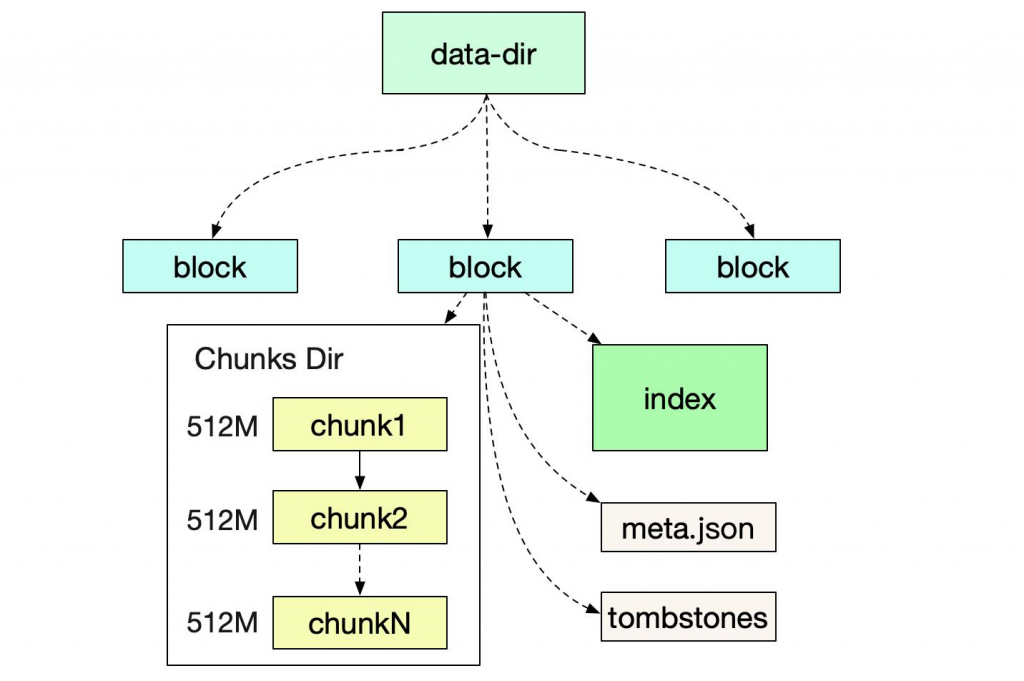

6. Prometheus Time-Series Database (TSDB)

Prometheus has a built-in TSDB optimized for fast ingestion and querying:

Data stored on local disk (default retention ~15 days)
Supports chunk compression for efficiency
Allows remote storage integrations (e.g., Thanos, Cortex, VictoriaMetrics) for long-term retention and scaling

7. Exporters (Metric Sources)

Prometheus itself only scrapes data — it depends on exporters to expose metrics. Common ones include:

Exporter	Purpose
node_exporter	OS-level metrics (CPU, memory, disk, network)
blackbox_exporter	Endpoint probing (HTTP, TCP, ICMP)
cadvisor / kube-state-metrics	Kubernetes pod/node metrics
snmp_exporter	Network devices via SNMP
mysqld_exporter, postgres_exporter	Database metrics

Custom applications can expose /metrics directly using Prometheus client libraries (Go, Python, Java, etc.).

8. Event Monitoring Use Cases

Prometheus is used for event-based monitoring where metrics change signal important state transitions or anomalies:

Event Type	Example Metric	Possible Alert
Service Down	`up == 0`	Instance down alert
High CPU/Memory	`node_cpu_seconds_total`, `node_memory_MemAvailable_bytes`	Resource exhaustion
Job Failure	`batch_job_success_total`	Job error spike
Network Issue	`node_network_receive_errs_total`	Packet loss
Latency Spike	`http_request_duration_seconds`	SLO violation

By continuously evaluating PromQL expressions, Prometheus detects these events in real time.

9. Integrations & Visualization

Prometheus integrates tightly with:

Grafana → Dashboards & visualization
Kubernetes → Auto-discovery of pods/services
Alertmanager → Notification and routing
Thanos / Cortex / VictoriaMetrics → Long-term storage and global view

Grafana queries Prometheus to show dashboards of time-series metrics and alert statuses — ideal for NOC or SRE teams.

10. Strengths & Limitations

Strengths

Simple and reliable architecture (no external dependencies)
Multi-dimensional data model (labels)
Rich query language (PromQL)
Powerful alerting with routing and deduplication
Excellent Kubernetes integration
Strong ecosystem and community

Limitations

Short-term storage (default local retention)
Not ideal for high-cardinality data (too many unique label combinations)
Limited support for push-based metrics (via Pushgateway workaround)
No built-in log or trace collection (use Tempo/Loki for full observability)

Summary

Prometheus is the backbone of modern observability stacks, providing:

Event monitoring via metrics scraping
Powerful query-based alerting
Flexible integrations with Grafana and Alertmanager

Together, Prometheus + Alertmanager + Grafana (the “PGA stack”) deliver a complete open-source monitoring and alerting solution that is reliable, extensible, and cloud-native.

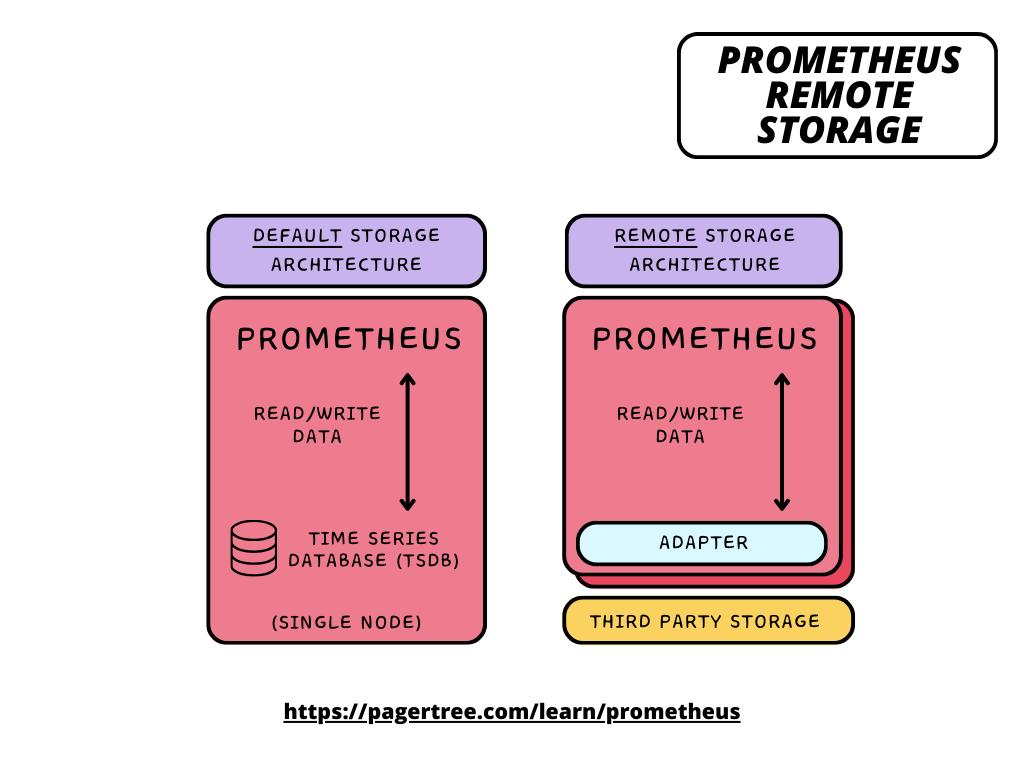

Remote Storage Backends for Prometheus

Comparing and contrasting Prometheus remote storage backends: Thanos, Cortex, and VictoriaMetrics — focusing on architecture, scalability, long-term retention, operational complexity, and ecosystem fit.

Why Remote Storage?

Prometheus by default:

Stores metrics locally on disk.
Retains data typically for 15 days.
Is standalone — no horizontal scaling or global querying.

For production-grade, enterprise or AI/HPC-scale monitoring, teams need:

Long-term metric retention (months/years)
Cross-cluster/global querying
High availability and scalability
Object storage (S3/GCS/Azure Blob) for cost efficiency

That’s where Thanos, Cortex, and VictoriaMetrics come in — each extends Prometheus into a global, horizontally scalable, long-term metrics platform.

1. Thanos

Overview

Thanos is an open-source project by Improbable, now part of CNCF, that “wraps” Prometheus with additional components to achieve global, scalable, long-term storage.

It extends Prometheus using a sidecar model.

Architecture Components

Component	Function
Sidecar	Runs next to Prometheus, uploads blocks to object storage (S3/GCS), exposes Store API for queries.
Store Gateway	Reads historical data from object storage and serves via gRPC.
Querier	Federates multiple data sources (local Prometheus, Store Gateways) and provides a unified query view.
Compactor	Optimizes data blocks (downsampling, deduplication).
Ruler	Handles alerting and recording rules globally.
Receive	Optional: can ingest remote write data directly (turns Thanos into a central TSDB).

Storage

Object storage: Amazon S3, Google Cloud Storage, Azure Blob, Ceph, MinIO, etc.
Data retained forever at low cost.
Compaction & downsampling for efficiency.

Strengths

Seamless with existing Prometheus (non-intrusive, just add a sidecar)
Cost-efficient long-term storage on object stores
Global querying & deduplication across clusters
Native HA Prometheus support
Supports downsampling for faster queries on older data

Weaknesses

Complex multi-component deployment (many moving parts)
High operational overhead (especially Compactor, Querier, Store)
Query latency can increase for deep historical data
Harder to manage at massive multi-tenant scale

Best Fit

Kubernetes-heavy environments with multiple Prometheus instances
Organizations already using object storage (S3/GCS)
Teams wanting 100% Prometheus compatibility and federated global view

2. Cortex

Overview

Cortex is also a CNCF project, developed originally by Weaveworks and Grafana Labs.
It aims to provide a massively scalable, multi-tenant, Prometheus-compatible metrics platform — think “Prometheus-as-a-Service”.

It uses a microservices architecture and a chunk-based storage model.

Architecture Components

Cortex splits into multiple horizontally scalable services:

Component	Description
Distributor	Receives remote writes from Prometheus and forwards to ingesters.
Ingester	Writes incoming data to backend storage and handles queries for recent data.
Querier	Reads data from both ingesters and long-term storage.
Store-Gateway	(in newer architectures) for querying long-term blocks.
Ruler	Global alerting/rules evaluation.
Query-Frontend	Optional layer for caching and parallelizing queries.
Compactor	Merges small blocks to improve efficiency.

Storage

Cortex stores data in object stores (S3, GCS, Azure Blob) or databases like DynamoDB, Bigtable, Cassandra, depending on the mode.

Supports two modes:

Chunks storage (older)
Blocks storage (Thanos-like, newer and preferred)

Strengths

True multi-tenancy (strong isolation per tenant)
Horizontally scalable (microservices-based)
Integrated query caching, sharding, and parallelization
High availability and HA Prometheus ingestion
Enterprise-friendly; used by Grafana Cloud

Weaknesses

Operationally heavy (many microservices)
More complex than Thanos to run standalone
Requires coordination of storage and caching backends
Overhead of multi-tenancy if not needed

Best Fit

Large SaaS providers, enterprises, or cloud observability platforms
Multi-tenant environments (shared clusters per team/project)
Environments needing real-time ingestion and long-term storage
When operating at hundreds of Prometheus instances scale

3. VictoriaMetrics

Overview

VictoriaMetrics is a high-performance time-series database designed to be simpler, faster, and more resource-efficient than Prometheus + Thanos/Cortex.

It can act as:

A drop-in remote write storage for Prometheus
A Prometheus-compatible TSDB
A single-binary all-in-one system (cluster or single-node mode)

Architecture Components

Mode	Description
Single-node	Simple setup, stores all data locally, ideal for small/medium environments.
Cluster mode	Scalable version with vmstorage, vminsert, and vmselect components.
vmagent	Lightweight agent replacing Prometheus remote write or scraping.
vmalert	Integrated alerting component (replacement for Prometheus + Alertmanager).

Storage

Optimized for local disk and object storage (via snapshots/backup).
Extremely efficient compression (10× smaller footprint than Prometheus).
Supports multi-year retention easily.

Strengths

Simplicity (can run as a single binary)
Blazing-fast ingestion and queries
Low resource consumption (RAM and CPU efficient)
Drop-in replacement for Prometheus remote write
Integrated alerting and scraping tools (vmalert, vmagent)
Supports PromQL and InfluxQL

Weaknesses

No built-in object storage integration for native block compaction (uses snapshots)
Not officially CNCF or vendor-neutral (single-vendor project)
Some PromQL functions differ slightly from Prometheus semantics
Ecosystem less standardized than Thanos/Cortex

Best Fit

Teams wanting simplicity and performance
On-prem or hybrid environments (HPC, research clusters)
Cost-sensitive deployments (less infra, smaller footprint)
Self-hosted single-tenant setups

4. Comparison Table

Feature	Thanos	Cortex	VictoriaMetrics
Project Type	CNCF (Open Source)	CNCF (Open Source)	Independent OSS (VictoriaMetrics Ltd)
Architecture Style	Sidecar + Components	Microservices	Monolithic (or light cluster)
Scalability	Horizontal (federation)	Full horizontal scale	Very efficient single-node or cluster
Multi-tenancy	Limited (label-based)	Native multi-tenant	Partial (via label isolation)
Storage Backend	Object stores (S3, GCS, etc.)	Object + DBs (S3, DynamoDB, etc.)	Local/Cloud disks (snapshots)
HA / Deduplication	Yes	Yes	Yes
Query Layer	Federated (Querier)	Parallelized (Query-Frontend)	Built-in
Alerting	Thanos Ruler	Cortex Ruler	vmalert
Operational Complexity	Moderate–High	High	Low
Best Use Case	Multiple Prometheus clusters	Multi-tenant cloud platform	Lightweight, high-speed self-hosted
Example Users	Red Hat, Grafana OSS, CNCF users	Grafana Cloud, Weaveworks	Cloudflare, GitLab, Aiven, many HPCs

5. Summary Insight

Need	Choose
Keep your Prometheus instances but want global long-term view	Thanos
Operate Prometheus as a multi-tenant SaaS platform	Cortex
Need simple, high-performance, low-cost storage	VictoriaMetrics

6. Example Architectures

Thanos: Prometheus (sidecar) → Object Storage → Thanos Querier + Compactor → Grafana
Cortex: Prometheus (remote write) → Distributors → Ingester + Storage → Query Frontend → Grafana
VictoriaMetrics: Prometheus (remote write) → vmstorage (cluster) → vmselect → Grafana

Conclusion

All three — Thanos, Cortex, and VictoriaMetrics — extend Prometheus for long-term, scalable, reliable metric storage.

| Simplicity → Complexity |
| VictoriaMetrics 🠒 Thanos 🠒 Cortex |

Thanos excels for multi-cluster observability with minimal Prometheus disruption.
Cortex suits massive, multi-tenant, SaaS-grade deployments.
VictoriaMetrics wins on simplicity, efficiency, and performance for single-tenant or HPC-scale clusters.

Grafana Cortex/Mimir

Grafana Mimir implements long-term, horizontally scalable, multi-tenant storage for Prometheus metrics.

1. Cortex Overview

Cortex is a CNCF project (incubating) designed to run Prometheus at massive scale — providing:

Long-term, durable storage for metrics
Horizontal scalability (both ingestion and queries)
True multi-tenancy (per-tenant isolation and authentication)
Global querying across all tenants and Prometheus instances
High availability and deduplication of metrics

Grafana Labs is the largest maintainer and operator of Cortex, which powers Grafana Cloud Metrics.

2. Architectural Overview

Cortex is microservices-based, with each component independently scalable.
It follows a write path and read path design similar to a distributed database.

Core Components

Component	Function
Distributor	Receives time series via Prometheus remote_write API, validates, sharding, and sends to Ingester(s).
Ingester	Buffers and writes metrics to persistent storage (chunks or blocks). Handles recent data queries.
Querier	Handles read queries from Grafana or Prometheus federation. Fetches from both ingesters (recent) and object storage (historical).
Query Frontend	Caches and parallelizes queries for performance.
Compactor	Merges smaller blocks into larger ones, downsampling and optimizing storage.
Ruler	Evaluates alerting and recording rules at scale (multi-tenant).
Store Gateway	Serves data from long-term object storage to Querier (blocks mode).
Alertmanager	Tenant-aware alert routing.
Auth & API Gateway	Enforces tenant isolation and access control.

Data Flow Summary

[Prometheus/Agent] → Distributor → Ingester → Object Store (S3/GCS/DynamoDB)
                                      ↓
                                   Querier
                                      ↓
                                   Grafana UI

3. Storage Modes

Cortex supports two main storage engines (evolved over time):

Storage Engine	Description	Status
Chunks Storage	Original Cortex format using key-value stores	Legacy (deprecated)
Blocks Storage	Newer Thanos-like format using TSDB blocks	Current (preferred, default)

3.1 Chunks Storage (Legacy)

Each metric is split into chunks (typically 12-hour segments).
Stored in NoSQL backends (e.g. DynamoDB, Bigtable, Cassandra).
Index entries point to chunk locations.
Allowed fast ingestion but complex querying.

Problems:

Difficult to manage large indexes
Expensive and slow for long-term queries
High operational complexity (managing both chunks + index tables)

3.2 Blocks Storage (Current Standard)

Modern Cortex (and Grafana Cloud) now use Blocks Storage, modeled after Thanos’s format.

Key Concepts:

Metrics are grouped into TSDB blocks (2-hour data windows)
Blocks are uploaded to object storage (S3/GCS/Azure Blob)
Each block contains:
- chunks/ → actual time series data
- index → label/value metadata for querying
- meta.json → metadata (time range, labels, compaction level)
- tombstones → deleted series

Data Lifecycle:

Ingesters hold in-memory TSDBs (short-term buffer)
Every 2 hours → ingester flushes a block to object storage
Compactor merges small blocks, removes duplicates, down-samples
Store Gateway exposes blocks via Cortex Store API
Querier merges data from:
- Recent blocks (still in ingesters)
- Historical blocks (in object storage)

4. Multi-Tenancy & Isolation

Cortex is designed as a multi-tenant system from the ground up.

Tenant Model

Each tenant (customer, team, environment) has a unique tenant ID
Tenant ID is passed in HTTP header:
X-Scope-OrgID: <tenant-id>
All data in storage and memory is namespaced by tenant ID
Authentication and rate-limiting are per tenant

Storage Isolation

Each tenant’s blocks/chunks are stored in their own object store prefix: s3://cortex-data/<tenant-id>/blocks/<block-id>
Queries are filtered by tenant ID to prevent cross-tenant visibility.

5. Query Path Internals

When Grafana (or Prometheus via federation) issues a query:

Request hits Query Frontend
- Splits long-range queries into smaller time shards
- Applies caching and parallel execution
Querier fetches:
- Fresh data from ingesters
- Historical data from Store Gateways (reading object storage)
Results are merged, deduplicated, and returned.

Performance Features

Query result caching (Redis, Memcached)
Sharding and parallelism (per time range)
Chunk and index caching (object store acceleration)
Downsampling of historical data (via Compactor)

6. Data Storage Details

Object Storage Layer

Cortex relies on cloud-native object stores:

AWS S3
Google Cloud Storage
Azure Blob Storage
MinIO or Ceph (self-hosted)

Metadata Storage

Cortex stores block metadata in a key-value database:
- DynamoDB, Bigtable, or Consul (depending on deployment)
- Used for block discovery and tenant indexing

7. Operational Behavior in Grafana Cloud

Grafana Cloud’s Metrics service (built on Cortex) adds:

Centralized auth via Grafana Cloud’s identity system
Clustered distributors and ingesters running across regions
Compaction + retention policies per customer tier
Replication factor 3 for HA ingestion
Query Federation across multiple backends for global metrics

Grafana Labs operates tens of Cortex clusters, each serving thousands of tenants, with billions of active time series.

8. Scaling Characteristics

Scaling Dimension	Cortex Behavior
Ingestion	Scale horizontally by adding Distributors/Ingesters
Querying	Scale horizontally by adding Queriers and Frontends
Storage	Object storage scales infinitely
Multi-tenancy	Strong isolation, per-tenant quotas, authentication
HA Prometheus	Deduplication based on external labels

Cortex can handle millions of time series per second ingestion, depending on cluster sizing.

9. Comparison to Thanos

Feature	Thanos	Cortex (Grafana)
Architecture	Sidecar + Components	Microservices
Deployment	Add-on to Prometheus	Centralized system
Multi-tenancy	Basic (labels)	Strong tenant isolation
Storage Format	TSDB blocks	TSDB blocks
Scaling	Federation (per Prometheus)	Horizontal (microservices)
Operational Complexity	Moderate	High (many components)
Query Performance	Good for few clusters	Excellent at large scale
Use Case	Multiple Prometheus clusters	SaaS metrics platform

Grafana Labs actually contributes to both Thanos and Cortex, but:

Grafana Cloud (Metrics) uses Cortex
Grafana Enterprise Metrics (GEM) is based on Cortex blocks storage

10. Summary Table

Category	Description
Data Model	Prometheus TSDB (blocks)
Write Path	Prometheus → Distributor → Ingester → Object Store
Read Path	Querier ← Ingester + Store Gateway
Storage Backend	Object stores (S3/GCS/Azure)
Index Storage	DynamoDB / Bigtable / etc.
Retention	Configurable (months/years)
Multi-Tenancy	Built-in (per-tenant isolation, quotas, auth)
Alerting	Cortex Ruler (multi-tenant)
Scaling	Horizontal for ingestion, querying, and compaction
Used By	Grafana Cloud Metrics, Grafana Enterprise Metrics

11. Key Advantages in Grafana Cortex Implementation

Multi-tenant, horizontally scalable long-term Prometheus storage
Supports billions of active time series
Integrated caching and query acceleration
Full compatibility with PromQL
Cloud-optimized (object storage, stateless microservices)
Battle-tested in Grafana Cloud production

12. Typical Production Architecture (Grafana Cloud Example)

                   ┌───────────────────────────┐
                   │     Prometheus Agents     │
                   └────────────┬──────────────┘
                                │ (remote_write)
                                ▼
                         ┌────────────┐
                         │ Distributor│
                         └────┬───────┘
                              │ Sharded writes
                              ▼
                        ┌────────────┐
                        │ Ingester   │
                        └────┬───────┘
                             │ Flushes blocks
                             ▼
               ┌────────────────────────────────┐
               │  Object Store (S3 / GCS / etc.)│
               └────────────────────────────────┘
                             ▲
                             │
                     ┌───────┴───────────┐
                     │ Store Gateway     │
                     │ Compactor / Ruler │
                     └────────┬──────────┘
                              │
                              ▼
                        ┌────────────┐
                        │ Querier    │
                        │ + Frontend │
                        └────┬───────┘
                             │
                             ▼
                         ┌──────────┐
                         │ Grafana  │
                         └──────────┘

In summary:

Grafana’s Cortex storage implementation transforms Prometheus into a cloud-native, multi-tenant, long-term metrics platform.
It uses block-based TSDB storage in object stores, horizontally scaled microservices for ingestion and querying, and per-tenant isolation — enabling Grafana Cloud to store and query years of metrics data from millions of Prometheus series efficiently.

Compare Grafana Mimir vs VictoriaMetrics

For a 5 million+ active-series Prometheus workload and give concrete, cited estimates for performance (ingest/query), storage (1-year retention), ops complexity, and rough cloud costs.

1) Assumptions

(If your environment differs, the numbers will change; I tried to pick realistic defaults.)

Active series: 5,000,000 (user’s request)
Scrape interval: 15 seconds (Prometheus default; I also note differences for 60s)
Retention: 1 year (typical LTR)
Query load: not heavily specified — I show ingestion-side sizing and give guidance for query CPU separately.
Cloud object-store price: Amazon S3 Standard ≈ $0.023 / GB / month (first tier) — used for storage cost calc. Grafana Labs+1

2) Raw numbers & calculations (full detail)

2.1 Sample-rate math (common intermediate)

Seconds per year = 365 × 24 × 3600 = 31,536,000 s
Samples per series per year @15s = 31,536,000 ÷ 15 = 2,102,400 samples / series / year.
Total samples / year for 5M series = 5,000,000 × 2,102,400 = 10,512,000,000,000 samples / year.

(If you use 60s scrape: samples/series/year = 525,600; multiply accordingly.)

2.2 Storage — VictoriaMetrics (practical vendor numbers)

VictoriaMetrics publishes realistic compression numbers from production-like workloads: users and Managed VictoriaMetrics report ~0.4–0.6 bytes/sample for real-world metrics (node_exporter-type workloads), and Managed VM’s public benchmark shows ~0.6 bytes/sample at scale. Using that range is realistic for production data (it depends on value precision and series entropy). Medium+1

Estimates (5M series, 15s, 1 year):

Using 0.6 bytes/sample → total bytes = 10,512,000,000,000 × 0.6 = 6.3072×10¹² bytes ≈ 5.74 TiB (~5,874 GiB).
Using 0.5 bytes/sample → ≈ 4.78 TiB.
Using 0.4 bytes/sample → ≈ 3.82 TiB.

(Computation shown above; I used VictoriaMetrics’ published bytes/sample values.) VictoriaMetrics+1

Monthly S3 storage cost (if you snapshot/backup that data to S3 rather than keeping local disks):

5.74 TiB ≈ 5,874 GiB × $0.023 ≈ $135 / month (≈ $1,620 / year) (S3 Standard first-tier rate). Amazon Web Services, Inc.

Note: VictoriaMetrics often stores data on local disks (vmstorage) and offers snapshot/backup utilities to object stores; many users keep VM on local disks (cheaper for active queries) and only archive snapshots to S3. VictoriaMetrics+1

2.3 Storage — Grafana Mimir (official Grafana sizing guidance)

Grafana’s Mimir docs provide practical capacity rules-of-thumb for object-store-backed block storage. Grafana’s store-gateway disk estimate (their documented example) is:

13 GB disk per 1 million active series (this is derived in their docs assuming: 2 bytes per sample for compacted blocks, 15s scrape, 1-year retention, store-gateway replication factor 3 — see Grafana doc for exact assumptions). → 13 GB / 1M series / year. Grafana Labs

Using that Grafana figure:

For 5M active series → 13 GB × 5 = 65 GB total object-store block footprint (for 1 year retention under the doc assumptions). Grafana Labs

Monthly S3 storage cost (if you use S3 for Mimir blocks):

65 GB × $0.023 ≈ $1.50 / month (≈ $18 / year). Amazon Web Services, Inc.+1

Important caveat (read carefully): Grafana’s “13 GB per 1M series” estimate is based on specific* compaction/downsampling and index assumptions described in their docs** (they assume 2 bytes per sample for compacted blocks and other compression parameters). That value is much lower than raw-bytes-per-sample estimates (like VictoriaMetrics’ bytes/sample × samples/year). The discrepancy is because the two vendors use different post-compaction assumptions, index footprints, and accounting methods. In practice you should validate with your own dataset (label lengths, cardinality, histogram buckets and exemplars all change the outcome). Grafana Labs+1

3) Ingestion & CPU/memory estimates (sizing the ingestion path)

We must size how much CPU/memory to ingest the 5M series at 15s.

Samples-per-second:

Samples/sec = active_series ÷ scrape_interval = 5,000,000 ÷ 15 ≈ 333,333 samples / second.

3.1 Grafana Mimir ingestion sizing (use Grafana guidance)

Grafana Mimir docs give component scaling rules:

Distributor: ~1 CPU and 1 GB RAM per 25,000 samples/sec. → Distributor CPUs ≈ 333,333 ÷ 25,000 ≈ ~14 cores and ~14 GB RAM. Grafana Labs
Ingester memory/disk: docs say ~2.5 GB RAM + 5 GB disk per 300,000 in-memory series (useful for estimating how many ingesters you need; ingesters also have replication factor). Grafana Labs

So for the ingestion path in Mimir you’d typically run dozens of cores across distributors/ingesters for 5M series (depends on replication factor and how many series are “hot” in memory), plus Store-Gateway / Compactor resources for long-term blocks. The Mimir docs also recommend running one compactor per ~20M active series (compactor sizing also consumes disk). Grafana Labs

3.2 VictoriaMetrics ingestion sizing (practical observed numbers)

VictoriaMetrics publishes practical benchmark/managed numbers:

Managed VM benchmark: 2 vCPU + 4 GB RAM handled ~1M active series and ~211k samples/sec in their example. From that figure, scaling linearly (approx) gives for 5M series (~1.055M samples/sec) roughly ~10 vCPU + 20 GB RAM for ingestion (this is an extrapolation — VM scales well vertically and horizontally). VM also offers cluster mode (vminsert/vmstorage/vmselect) for HA and scale. VictoriaMetrics+1

VictoriaMetrics tends to need less memory per series than vanilla Prometheus and has very high single-node ingestion capability; however, for 5M series you will likely run cluster mode or beefy single-node hardware (fast NVMe). VictoriaMetrics+1

4) Query performance & sizing notes

Mimir: Query path is microservice-based (query-frontend, querier, store-gateway). Grafana’s guidance: 1 CPU + 1 GB per ~10 queries/sec on the querier, and store-gateway CPU/memory per queries is also given. Mimir is designed to scale horizontally for large query loads and to reduce index lookups; it’s optimized for large, multi-tenant query traffic. Grafana Labs
VictoriaMetrics: vmselect + vmstorage provide fast PromQL query responses; Managed VM examples show median query latencies of ~14 ms for certain workloads in benchmarks. In practice, VM often returns faster query latencies for many ad-hoc PromQL queries (depends on query complexity and whether you’re querying many historical blocks). VictoriaMetrics

Practical rule: if you have heavy dashboard/query workloads (many concurrent dashboards, large range queries), Mimir’s horizontal query fanout and caching may be preferable at very large multi-tenant scale; for simpler or smaller-tenant setups VM often wins for raw query latency and simplicity.

5) Operational complexity (ops) — what you’ll run & manage

Grafana Mimir

Many services: distributors, ingesters, queriers, query-frontend, store-gateway, compactor, ruler, etc. (microservices architecture). Grafana Labs
Requires object store (S3/GCS/Azure) for blocks + caches (memcached/Redis) for query acceleration. Grafana Labs
More moving parts → more operational overhead (service orchestration, scaling policies, compactor tuning, caches, RBAC/tenant auth). Grafana provides production runbooks, but running at scale requires platform engineering effort. Grafana Labs+1

VictoriaMetrics

Simple deployment options: single binary for single-node, or small set of components (vminsert, vmstorage, vmselect) in cluster mode. Fewer components to operate. VictoriaMetrics Docs+1
Local-disk oriented (vmstorage), optional snapshot/backup to object storage — fewer spinner components like compactor/store-gateways vs. Mimir.
Lower ops cost for one-tenant or straightforward multi-tenant needs, but if you need very strong tenant isolation at SaaS scale, you may still choose to run multiple clusters or more orchestration.

6) Cost comparison (storage + infra) — rough, order-of-magnitude

Important: these are illustrative numbers — final numbers depend on your cloud pricing, instance types, IO profile, data cardinality (label sizes), and query load. I show one retention+storage cost axis and a rough compute estimate for ingestion CPUs.

Storage (1 year retention, 5M series, 15s scrape)

Grafana Mimir (Grafana doc estimate): ~65 GB total → S3 cost ≈ $1.5 / month (~$18 / year). Grafana Labs+1
VictoriaMetrics (0.6 bytes/sample): ~5.74 TiB (≈ 5,874 GiB) → S3 cost ≈ $135 / month (≈ $1,620 / year). VictoriaMetrics+1

Why such a big difference? Because Grafana’s Mimir estimates reflect their block-compaction and index assumptions (their doc used 2 bytes/sample post-compaction + other factors and produced 13GB per 1M series). VictoriaMetrics reports bytes/sample numbers from real ingestion benchmarks (0.4–0.6 bytes/sample) and tends to store more raw data locally (or snapshot to object store) — different approaches to compaction/encoding and where you pay (object store vs local disk) produce the variance. Don’t treat either single number as gospel — benchmark with your data. Grafana Labs+1

Compute (ingest path) — rough cores

Mimir distributors: ~14 cores + 14 GB RAM (based on 333k sps and 1 core per 25k sps). Add ingesters and replication overhead. Grafana Labs
VictoriaMetrics extrapolation**: Managed example shows 2 vCPU/4GB handled 211k sps (1M series). Extrapolate to 5M → ~10 vCPU + 20 GB RAM (rough linear scaling). Use cluster mode for HA. VictoriaMetrics

Rough cloud compute cost (very approximate): if you run 10–20 vCPUs continuously (VM/EC2 instances), cost could be hundreds of $/month depending on instance types and zones; Mimir’s multi-component cluster for high availability will typically cost more in compute/ops than a compact VM setup — but Mimir’s overall storage cost (object store) can be much lower depending on the assumptions they used. You should factor the cost of S3 requests and compaction IO for Mimir as well.

7) Practical interpretation & recommendations

If you are a SaaS provider or need strong multi-tenant isolation and global aggregation (hundreds of tenants, many queries):
- Grafana Mimir is purpose-built for this. It scales horizontally and is what Grafana Cloud / Grafana Enterprise Metrics uses in production for massive scales. Expect higher ops complexity but excellent multi-tenant controls and global querying. Grafana Labs+1
If you are a single tenant, self-hosted, want fastest ingestion and simplest ops at lower infra/engineering overhead:
- VictoriaMetrics likely produces lower operational overhead and excellent ingestion/query performance; it also compresses very well for many real workloads (0.4–0.6 bytes/sample) so raw disk usage is low (but you must choose whether to keep data on local disks or snapshot to object storage). VictoriaMetrics+1
Be very careful about vendor numbers:
- The Grafana Mimir “13 GB per 1M series” rule-of-thumb is explicit in Grafana’s docs and is calculated from certain compaction assumptions — but it can look “too good” compared to per-sample bytes metrics from other projects. The two approaches measure different things (compacted object-block footprint vs bytes/sample timeseries accounting). Do your own small-scale test with your actual metrics (label set, histogram buckets, exemplar use, and scrape intervals). Grafana Labs+1
If cost is the only driver: compare total cost = compute + storage + ops for your workload. Mimir may save object storage costs dramatically (per Grafana doc) but will cost more in compute and ops; VM will cost more raw storage (if you send snapshots to S3) but requires less orchestration.

8) Quick TL;DR table (5M active series, 15s scrapes, 1y retention)

Aspect	Grafana Mimir (doc-based)	VictoriaMetrics (practical benchmarks)
Estimated storage (1y)	~65 GB (13 GB per 1M × 5) — Grafana doc assumptions. Grafana Labs	~3.8–5.7 TiB (0.4–0.6 bytes/sample) → ~3.8–5.7 TiB (~3,916–5,874 GiB). Medium+1
S3 storage cost (monthly)	~$1.5 / month (~$18 / year). Amazon Web Services, Inc.	~$135 / month (~$1,620 / year) at $0.023/GB. Amazon Web Services, Inc.
Ingest CPU (rough)	Distributor ~14 cores (+ ingesters/quasi many components). Grafana Labs	Extrapolated ~10 vCPU (based on 2vCPU handling 1M series @211k sps in Managed VM benchmark). VictoriaMetrics
Ops complexity	High — many microservices, object-store glue, caching, compactor tuning. Grafana Labs	Low–Medium — single binary or small set of services; fewer moving parts. VictoriaMetrics Docs
Best for	Massive multi-tenant SaaS, global queries, minimal per-tenant storage cost	High-performance single-tenant/cluster use, simple ops, efficient compression

9) Final notes & recommended next steps

Run a short benchmark with real data shape. I strongly recommend a 1–2 day trial ingest of a representative sample of your metrics (full label cardinality and histogram usage). That will remove uncertainty — both Mimir and VictoriaMetrics recommend testing with your real data. (Grafana provides capacity planning docs; VictoriaMetrics provides benchmark tooling.) Grafana Labs+1
Decide where you want the cost: object storage (cheap, scalable) vs local disks (fast, but you manage disk). Mimir leans on object storage and microservices; VM is disk-first with snapshot capabilities. Grafana Labs+1
If you want, I can produce a one-page cost model showing compute + object storage + ops estimates for your exact scrape interval, retention, and expected queries (I’ll use the same method above and you can tweak scrape/retention). I can also generate the exact commands for a 24–48h benchmark you can run (prometheus-bench or vmagent-based generator) and a small script that computes the storage/costs from the measured bytes/sample.

Sources / further reading (key items I used)

Grafana Mimir — planning capacity & component sizing (store-gateway disk & compactor guidance). Grafana Labs
VictoriaMetrics — Managed benchmark & bytes/sample guidance (0.6 bytes/sample example + ingestion/query results). VictoriaMetrics
VictoriaMetrics compression discussion / real-world bytes/sample explanation. Medium
VictoriaMetrics docs (single-node/cluster modes). VictoriaMetrics Docs
S3 Standard pricing (used $0.023 / GB / month). Amazon Web Services, Inc.
