At this point your homelab has become a real cloud.

You have built:

Hardware
    ↓
Proxmox
    ↓
Ceph
    ↓
OpenStack

Now you’re going to deploy Kubernetes as a tenant workload running on OpenStack.

This is exactly how many organisations operate production Kubernetes clusters.

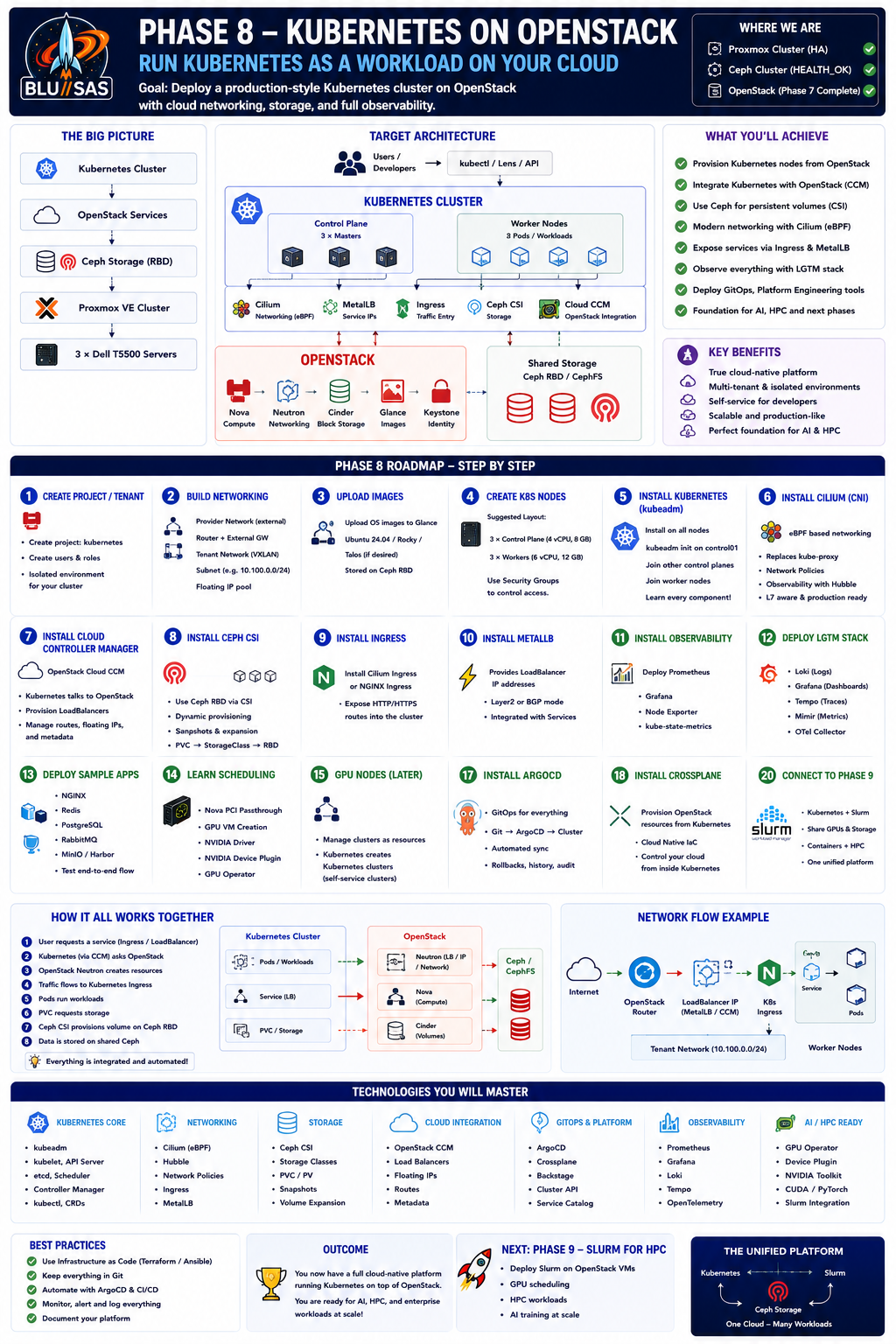

The Goal

Build this stack:

                      Users
                        │
                 kubectl / Lens
                        │
                 Kubernetes API
                        │
        ┌────────────────────────────────┐
        │        Kubernetes Cluster      │
        │                                │
        │ Control Plane                  │
        │ Worker Nodes                   │
        │ Cilium                         │
        │ MetalLB                        │
        │ Ingress                        │
        │ Longhorn / Ceph CSI            │
        └────────────────────────────────┘
                        │
                  OpenStack APIs
                        │
           Nova  Neutron  Cinder  Glance
                        │
                     Ceph RBD
                        │
                  Proxmox Cluster
                        │
                 Dell T5500 Servers

Why Kubernetes AFTER OpenStack?

Many people install Kubernetes directly onto bare metal.

That teaches Kubernetes.

Installing Kubernetes on OpenStack teaches:

Cloud architecture
Infrastructure abstraction
VM orchestration
Persistent storage
Cloud networking
Tenant isolation

It also mirrors enterprise deployments.

Learning Objectives

By the end of Phase 8 you should understand:

Kubernetes architecture
How OpenStack provisions Kubernetes nodes
Kubernetes networking
Cloud storage
CSI drivers
CNI plugins
Load balancing
Ingress
Cloud Controller Manager
Cluster API
Kubernetes autoscaling

Step 1 — Create a Kubernetes Project in OpenStack

Create a dedicated tenant/project:

Project:
kubernetes

Create:

Users
Networks
Routers
Security Groups
Floating IP Pool

Treat it as an isolated customer environment.

Step 2 — Build Networking

Inside OpenStack create:

Provider Network
↓
Router
↓
Tenant Network
↓
Subnet
↓
Floating IPs

Example:

External

192.168.1.x
↓
Router
↓
10.100.0.0/24
↓
Kubernetes Nodes

Step 3 — Upload Kubernetes Images

Create cloud images:

Ubuntu 24.04

Rocky Linux

Talos Linux

Store them inside:

Glance
↓
Ceph RBD

Step 4 — Build Kubernetes VMs

Suggested layout:

VM	vCPU	RAM
k8s-control01	4	8 GB
k8s-control02	4	8 GB
k8s-control03	4	8 GB
worker01	6	12 GB
worker02	6	12 GB
worker03	6	12 GB

If resources are tight:

1 Control
3 Workers

is perfectly acceptable.

Step 5 — Install Kubernetes

I recommend:

kubeadm

Why?

You’ll understand:

certificates
kubeadm init
join tokens
etcd
kubelet
kube-proxy

instead of hiding them behind automation.

Kubernetes Architecture

             kube-apiserver
                 │
 Scheduler   Controller Manager
                 │
               etcd

──────────────────────────────────

 kubelet
 kube-proxy
 containerd
 Worker Nodes

Learn every component.

Step 6 — Install Cilium

Skip Flannel.

Skip Weave.

Install:

Cilium

Because:

eBPF
production ready
AI cloud favourite
replaces kube-proxy

Learn:

Hubble
Network Policies
L7 filtering
Service Mesh

Step 7 — Install Cloud Controller Manager

This is where OpenStack becomes interesting.

Install:

OpenStack Cloud Controller Manager

It allows Kubernetes to request:

Load Balancers
Floating IPs
Routes
Metadata

directly from OpenStack.

Now Kubernetes understands:

Nova
Neutron
Cinder

Step 8 — Install Ceph CSI

Instead of Longhorn

Use:

Ceph CSI

because OpenStack already uses Ceph.

Architecture

Pod
↓
PVC
↓
StorageClass
↓
Ceph CSI
↓
Ceph RBD

Learn:

Storage Classes
Dynamic Provisioning
Volume Expansion
Snapshots

Step 9 — Install Ingress

Install

NGINX Ingress

Cilium Ingress

Personally I’d use:

Cilium Ingress

because:

fewer moving parts
eBPF
integrates well

Step 10 — Install MetalLB

Although OpenStack already provides networking

MetalLB teaches:

Layer 2
BGP
Service exposure

You’ll understand how LoadBalancer services actually work.

Step 11 — Install Metrics

Deploy:

Prometheus
Grafana
Node Exporter
kube-state-metrics

Step 12 — Install LGTM

You already know this.

Deploy:

Grafana
↓
Mimir
↓
Loki
↓
Tempo
↓
OpenTelemetry Collector

Now observe:

Kubernetes
OpenStack
Ceph

in one place.

Step 13 — Deploy Sample Applications

Deploy:

NGINX
Redis
PostgreSQL
RabbitMQ
MinIO
Harbor

Step 14 — Learn Kubernetes Scheduling

Understand:

Node Selectors
Affinity
Anti-affinity
Taints
Tolerations
Topology Spread
Priority Classes
Pod Disruption Budgets

Step 15 — GPU Nodes

Later

Configure:

Nova
↓
PCI Passthrough
↓
GPU VM
↓
NVIDIA Driver
↓
GPU Operator
↓
Kubernetes

Deploy

NVIDIA Device Plugin

Run:

PyTorch
TensorFlow
CUDA Samples

Step 16 — Install Cluster API

Cluster API lets Kubernetes build Kubernetes.

Architecture

Management Cluster
↓
Cluster API
↓
OpenStack
↓
Creates
↓
Worker Clusters

This is becoming common in enterprise environments.

Step 17 — Install ArgoCD

Learn GitOps.

Git
↓
ArgoCD
↓
Kubernetes

Everything becomes declarative.

Step 18 — Install Crossplane

This is where Platform Engineering begins.

Crossplane can provision:

OpenStack resources
Kubernetes resources
Cloud resources

from Kubernetes itself.

Step 19 — Build an Internal Developer Platform

Deploy:

Backstage
ArgoCD
Crossplane
Harbor

Developers should be able to click:

Create Kubernetes Cluster

without touching OpenStack.

Step 20 — Connect to Phase 9 (Slurm)

Eventually your Kubernetes cluster becomes another workload platform alongside HPC.

              OpenStack
        ┌────────┴─────────┐
   Kubernetes            Slurm
        │                  │
   Containers           HPC Jobs
        │                  │
        Shared  Ceph  Storage

Both use:

Nova
Neutron
Ceph
GPU-enabled VMs

Technologies to Learn in Phase 8

Category	Technologies
Kubernetes	kubeadm, kubelet, etcd, API Server
Networking	Cilium, Hubble, eBPF, Cilium Ingress
Storage	Ceph CSI, Storage Classes, PVCs
Cloud	OpenStack Cloud Controller Manager
Security	RBAC, Network Policies, Pod Security
GitOps	ArgoCD
Platform Engineering	Crossplane, Backstage
Observability	Prometheus, Grafana, Mimir, Loki, Tempo, OpenTelemetry
AI	NVIDIA GPU Operator, Device Plugin
Cluster Management	Cluster API

Final Target Architecture

By the end of Phase 8, your homelab should look like this:

                  Users
                     │
        kubectl / Horizon / Grafana
                     │
      ┌──────────────┴──────────────┐
      │                             │
 Kubernetes Platform           OpenStack Control Plane
 (Cilium, ArgoCD, CSI)      (Nova, Neutron, Keystone)
      │                             │
      └──────────────┬──────────────┘
                     │
                 Ceph Storage
             (RBD, CephFS, RGW)
                     │
              Proxmox VE Cluster
                     │
          3 × Dell T5500 Workstations

This phase is where your homelab evolves from a cloud infrastructure into a cloud-native platform. You’ll not only understand how Kubernetes works, but how it integrates with OpenStack, Ceph, and later Slurm to support containerised applications, AI training, and HPC workloads in a realistic enterprise environment.
