Verification of the Queuing Behaviour of the Otel Collector

The most important behavior of the OpenTelemetry Collector’s sending_queue during an exporter/backend outage. It focuses on how the queue behaves when the downstream observability backend (Mimir, Loki, Tempo, OTLP endpoint, Kafka, etc.) becomes unavailable.

Executive Summary

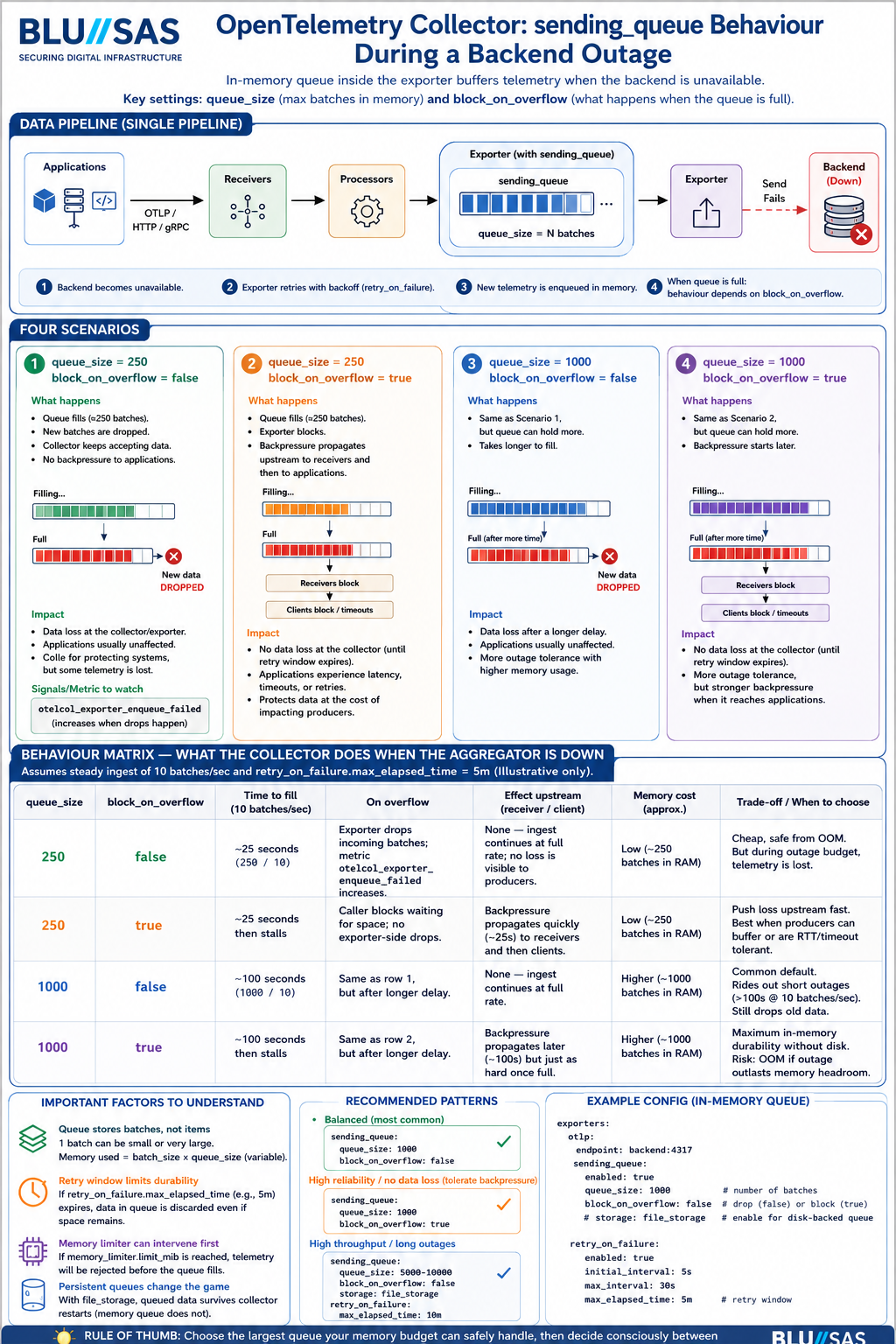

The diagram is explaining the interaction between:

exporters:
  otlp:
    endpoint: backend:4317
    sending_queue:
      enabled: true
      queue_size: 1000
      block_on_overflow: false
    retry_on_failure:
      enabled: true
      max_elapsed_time: 5m

The two key settings are:

SettingMeaning
queue_sizeNumber of batches that can be buffered in memory
block_on_overflowWhat happens when queue becomes full

When the backend is unavailable:

  1. Exporter retries sending.
  2. New telemetry accumulates in memory queue.
  3. Queue eventually fills.
  4. Collector must decide:
    • Drop data (block_on_overflow=false)
    • Apply backpressure (block_on_overflow=true)

Architecture Section Verification

The diagram shows:

Applications
     ↓
OTEL Receivers
     ↓
Processors
     ↓
Sending Queue
     ↓
Exporter
     ↓
     X
Backend Down

This is correct.

The queue exists inside the exporter pipeline.

Telemetry already accepted by the receiver is not immediately lost when the backend disappears.

Instead:

Receiver
   ↓
Processor
   ↓
Queue
   ↓
Exporter
   ↓
Backend

The queue temporarily absorbs the outage.

Scenario 1

queue_size=250

block_on_overflow=false

Diagram says:

Queue fills
Exporter starts dropping batches

This is correct.

Behaviour:

Backend Down
       ↓
Retry
       ↓
Queue fills
       ↓
New batches dropped

The collector continues accepting telemetry.

The application does not see a problem.

But:

Data loss occurs

Metrics:

otelcol_exporter_enqueue_failed

starts increasing.

Verification

Correct.

This is the safest option for cluster stability.

Many production deployments use this mode.

Scenario 2

queue_size=250

block_on_overflow=true

Diagram says:

Queue fills
Receiver blocks
Backpressure propagates upstream

Correct.

When queue is full:

Receiver
 ↓
blocked
 ↓
Client waits

Applications begin experiencing:

  • OTLP timeouts
  • Retries
  • Increased latency

Eventually:

App
 ↓
OTLP SDK
 ↓
Timeout
 ↓
Drop

Verification

Correct.

This shifts the loss upstream rather than inside the collector.

Scenario 3

queue_size=1000

block_on_overflow=false

Diagram says:

Same behaviour as Scenario 1
but takes longer to fill

Correct.

If ingest rate is:

10 batches/sec

Then:

250 queue ≈ 25 sec
1000 queue ≈ 100 sec

The arithmetic shown in the diagram is correct.

Important nuance

The real duration depends on:

batch size
memory limiter
CPU
export retry interval

The infographic correctly mentions this.

Scenario 4

queue_size=1000

block_on_overflow=true

Diagram says:

Longest outage absorption
Highest memory usage
Strongest backpressure

Correct.

This gives:

More time before pressure reaches applications

but increases RAM consumption.

Behaviour Matrix Verification

The table at the bottom is largely accurate.

Row 1

250
false

Overflow

Drops batches

Correct.

Upstream impact

None

Mostly correct.

Applications usually don’t notice.

Row 2

250
true

Overflow

Caller blocks

Correct.

Upstream impact

Backpressure

Correct.

Row 3

1000
false

Overflow

Same as row 1 after longer delay

Correct.

Row 4

1000
true

Overflow

Same as row 2 after longer delay

Correct.

What Is Missing?

The infographic simplifies several important production details.

1. Memory Limiter Processor

In real deployments you almost always have:

processors:
  memory_limiter:

Example:

processors:
  memory_limiter:
    limit_mib: 2048

If memory limit is reached:

Queue never reaches configured size

because the memory limiter starts rejecting telemetry first.

This is extremely important in Kubernetes.

2. Persistent Queues

The infographic assumes:

In-memory queue only

Modern OTEL Collector can also use persistent storage.

Example:

sending_queue:
  storage: file_storage

Then:

Memory
   +
Disk

can survive collector restarts.

Without persistent queues:

Collector Pod Restart
=
Queue Lost

3. Kubernetes Effects

For K8s SREs the important question is:

What if OTEL collector OOMs?

If queue is too large:

Backend outage
      ↓
Queue grows
      ↓
Memory grows
      ↓
OOMKill
      ↓
Queue lost

Therefore:

queue_size = 10000

is not automatically better.

4. Retry Window Matters

The diagram references:

max_elapsed_time = 5m

This is critical.

Once exceeded:

Retry stops

and queued telemetry is discarded.

Example:

retry_on_failure:
  max_elapsed_time: 5m

Backend down:

6 minutes

Result:

Telemetry lost

even if queue space exists.

SRE Production Recommendations

For Kubernetes / OpenStack / AI observability clusters:

Small environments

queue_size: 1000
block_on_overflow: false

Simple and safe.

Large production clusters

queue_size: 5000-10000

retry_on_failure:
  enabled: true

storage: file_storage

memory_limiter:
  limit_mib: 2048

Provides:

  • outage tolerance
  • controlled memory use
  • restart resilience

Critical telemetry

For audit/security/compliance:

block_on_overflow: true

or

Kafka
↓
OTEL Collectors
↓
Backend

so that telemetry is not silently dropped.

Final Verdict

Accuracy: 9/10

The infographic correctly explains:

  • Exporter queue behaviour
  • Queue sizing impact
  • block_on_overflow=true vs false
  • Backpressure propagation
  • Data loss trade-offs
  • Memory trade-offs
  • Retry interactions

The only major omissions are:

  1. memory_limiter processor
  2. Persistent queues (file_storage)
  3. OOMKill considerations in Kubernetes
  4. Exact interaction with retry_on_failure.max_elapsed_time

For an SRE interview discussing OpenTelemetry Collector resilience, the content is technically sound and reflects how the collector behaves during real backend outages.

The missing 1 point of the 9/10 for Accuracy is not because the infographic is fundamentally wrong. It’s because it simplifies several implementation details that become important in real production environments. I’d break it down like this:

AreaInfographicReality
Queue memory usageAssumes queue size directly maps to memory useBatch sizes vary enormously
Retry behaviourSimplifiedExporter retry policies are more complex
Memory limiterNot shownOften intervenes before queue fills
Persistent queuesNot shownCan completely change failure behaviour
BackpressureSimplifiedDepends on receiver/exporter protocol
Multi-pipeline collectorsNot shownPipelines can fail independently

The biggest technical issue is actually the memory calculation.

1. Queue Size ≠ Memory Usage

The infographic implies:

queue_size = 1000
≈ 4x memory of queue_size = 250

This is only approximately true.

The queue stores batches, not telemetry items.

Example:

Batch A:

10 metrics

Batch B:

10000 metrics

Both count as:

1 queue entry

Therefore:

queue_size = 1000

could consume:

50 MB

or

5 GB

depending on batching.

This is why the Collector team strongly recommends:

memory_limiter:

alongside sending queues.

2. Queue Fill Time Calculation Is Illustrative Only

The infographic says:

250 queue
10 batches/sec

≈ 25 seconds

This is mathematically correct:

250÷10=25250\div10=25250÷10=25

But in production:

Retry delay
CPU pressure
Batch processor
Network latency

all affect queue growth.

A collector might fill much faster or much slower.

The infographic does mention this in small text, so I wouldn’t call it wrong.

3. block_on_overflow=true Is More Nuanced

The infographic implies:

Queue full
↓
Receiver blocks
↓
Backpressure

This is usually true.

However:

Some receivers cannot fully propagate backpressure.

Examples:

  • Syslog UDP
  • Fluent Forward UDP
  • StatsD
  • Prometheus scrape model

For those:

Collector blocks

doesn’t necessarily mean:

Application slows down

because the sender may simply continue emitting data.

The data can still be dropped elsewhere.

4. Retry Window Simplification

The graphic assumes:

Backend down
↓
Queue fills
↓
Overflow

In reality:

Backend down
↓
Retries
↓
max_elapsed_time reached
↓
Data discarded

can occur before queue pressure becomes the dominant issue.

For example:

retry_on_failure:
  max_elapsed_time: 30s

with:

queue_size: 10000

You might lose telemetry due to retry expiry long before the queue fills.

5. Missing Persistent Queue Storage

This is probably the largest omitted feature.

The diagram assumes:

Collector restart
↓
Queue lost

because it is discussing:

sending_queue:

with in-memory storage.

Modern production collectors often use:

extensions:
  file_storage:

and

sending_queue:
  storage: file_storage

Then:

Collector restart
↓
Queue survives

which dramatically changes outage behaviour.

6. Missing Memory Limiter

For Kubernetes SREs this is probably the most important omission.

Most production configs contain:

processors:
  memory_limiter:

Example:

memory_limiter:
  limit_mib: 2048

When memory gets close to the limit:

Memory limiter activates
↓
Rejects telemetry
↓
Queue growth slows

So the collector may never actually reach the queue overflow state shown.

If I Were Reviewing This Diagram

I’d score the individual sections:

TopicAccuracy
Queue mechanics10/10
block_on_overflow explanation10/10
Backpressure concept9/10
Retry behaviour8/10
Memory modelling8/10
Production Kubernetes considerations7/10
Educational value10/10

Overall:

For teaching engineers how sending_queue works: 10/10.

For modelling real-world OpenTelemetry Collector behaviour in a production Kubernetes observability platform: about 9/10, because the interaction with memory_limiter, persistent queues, retry expiry, and varying batch sizes can materially change what actually happens during an outage.

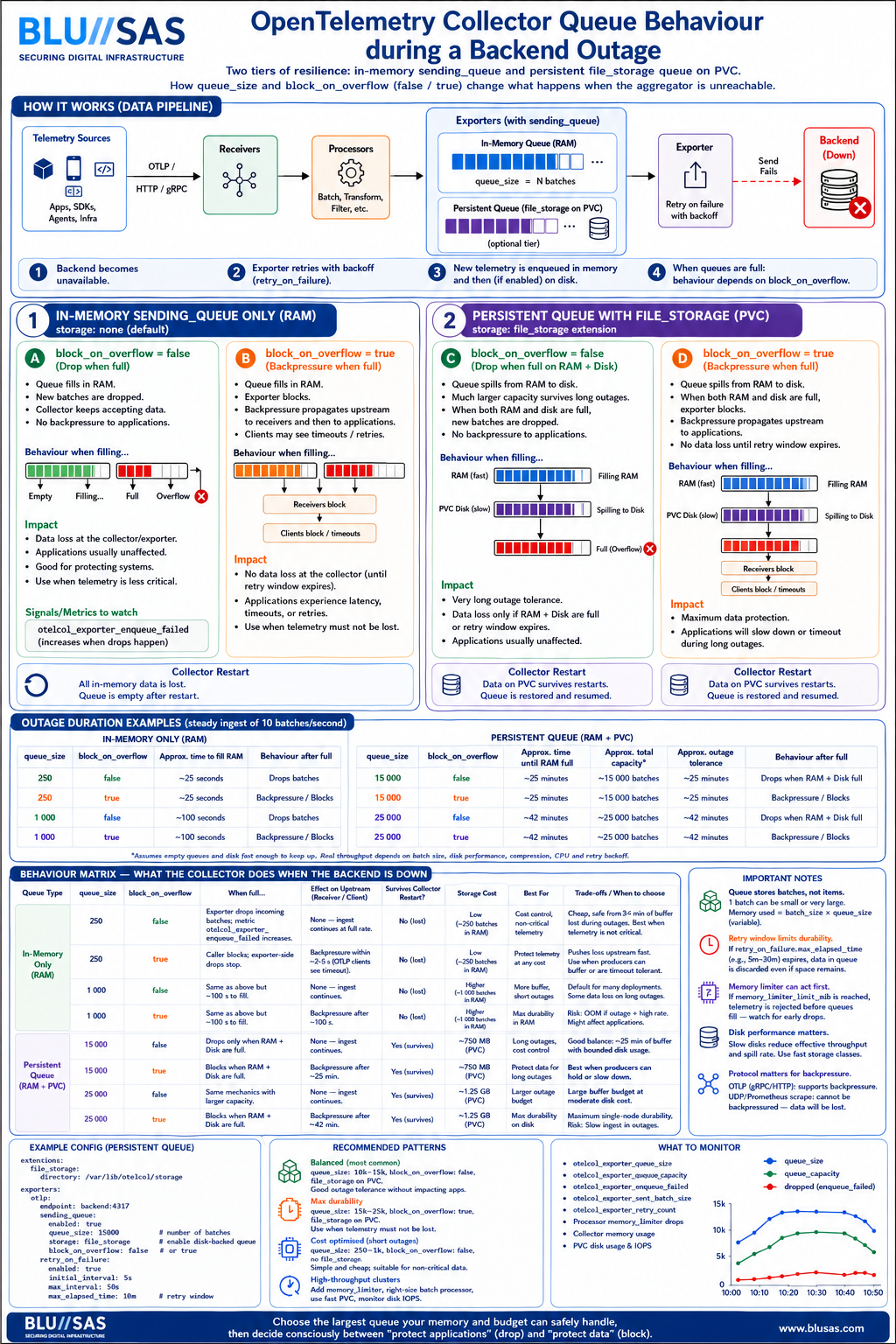

OpenTelemetry Collector resiliency during backend outages, progressing from:

Level 1

sending_queue (RAM only)

to

Level 2

sending_queue (RAM)
        +
file_storage (PVC/Disk)

The second diagram is actually teaching the next level of OTEL architecture that many engineers miss.

Overall Accuracy

DiagramAccuracy
sending_queue only9/10
file_storage persistent queue9.5/10
Combined understanding9.5/10

The second diagram fixes one of the largest omissions from the first:

Collector Restart

Previously:

Queue Lost

Now:

Queue Survives

which is a huge improvement.

The Architecture

The combined architecture is:

Applications
      │
      ▼
Receivers
      │
Processors
      │
      ▼

sending_queue
(RAM)

      │
      ▼

file_storage
(PVC)

      │
      ▼

Exporter

      │
      ▼

Loki / Mimir / Tempo

This is essentially how large Grafana Cloud, Splunk, New Relic and hyperscaler OTEL deployments are built.

What The First Diagram Teaches

The first infographic teaches:

exporters:
  otlp:
    sending_queue:
      enabled: true
      queue_size: 1000

The queue exists only in memory.

During outage:

Backend Down
      │
      ▼
Retries
      │
      ▼
Queue Fills
      │
      ▼
Drop
or
Backpressure

depending on:

block_on_overflow

What The Second Diagram Adds

The second infographic introduces:

extensions:
  file_storage:

and

exporters:
  otlp:
    sending_queue:
      storage: file_storage

Now the flow becomes:

Backend Down
      │
      ▼
Queue Fills
      │
      ▼
Queue Written To Disk
      │
      ▼
Backend Returns
      │
      ▼
Replay Queue

This is exactly correct.

Most Important Concept

Many engineers think:

file_storage
=
queue on disk

Not quite.

The diagram correctly shows:

sending_queue
       │
       ▼
file_storage

meaning:

RAM queue first
Disk queue second

The Collector still uses memory first.

Disk becomes overflow storage.

That is a very important distinction.

Queue Duration Comparison

The diagrams use:

10 batches/sec

for examples.

RAM Only

queue_size = 250

250 / 10

≈ 25 sec

Correct.

queue_size = 1000

1000 / 10

≈ 100 sec

Correct.

Persistent Queue

queue_size = 15000

15000 / 10

≈ 1500 sec

≈ 25 minutes

Correct.

queue_size = 25000

25000 / 10

≈ 2500 sec

≈ 41.7 minutes

Correct.

The maths is sound.

Restart Behaviour

This is where the second infographic becomes valuable.

RAM Queue

If collector restarts:

Collector Pod
      ↓
Restart
      ↓
Memory Lost
      ↓
Queue Lost

Correct.

file_storage Queue

Collector Pod
      ↓
Restart
      ↓
PVC Survives
      ↓
Queue Recovered

Correct.

This is the biggest operational advantage.

block_on_overflow=false

Both diagrams correctly describe:

block_on_overflow: false

as:

Queue Full
      ↓
Drop Data
      ↓
Applications Unaffected

This is usually the default operational choice.

The collector sacrifices telemetry to protect workloads.

block_on_overflow=true

The diagrams correctly show:

block_on_overflow: true

as:

Queue Full
      ↓
Receiver Blocks
      ↓
Backpressure
      ↓
Applications Impacted

This is accurate for OTLP gRPC and OTLP HTTP.

One Subtle Inaccuracy

There is one place where both diagrams slightly oversimplify.

They imply:

Queue Full
      ↓
Backpressure

However:

Backpressure depends on protocol.

For example:

OTLP gRPC

Yes.

Client waits

OTLP HTTP

Usually yes.

Prometheus Scrape

Not really.

Prometheus pulls.

The application never sees backpressure.

Syslog UDP

Impossible.

UDP cannot be backpressured.

Packets simply disappear.

Therefore:

block_on_overflow=true

does not always guarantee producer slowing.

Missing Production Component

The biggest remaining omission:

processors:
  memory_limiter:

Neither infographic shows:

memory_limiter:
  limit_mib: 2048

In production:

Memory Limiter
      ↓
Rejects Telemetry
      ↓
Queue Never Reaches Capacity

This often changes behaviour significantly.

Missing Kubernetes Reality

The diagrams assume:

Large Queue
=
Good

Not always.

Consider:

queue_size: 25000

with:

Large traces
Large logs

The collector may hit:

OOMKill

before reaching 25000 batches.

For Kubernetes SREs:

queue_size
memory_limiter
pod memory limit
PVC size

must be sized together.

Recommended Production Architecture

For your LGTM/Kubernetes/OpenStack style environments I would teach engineers the following pattern:

extensions:
  file_storage:
    directory: /var/lib/otel

processors:
  memory_limiter:
    limit_mib: 2048

exporters:
  otlp:
    sending_queue:
      enabled: true
      queue_size: 10000
      storage: file_storage
      block_on_overflow: false

    retry_on_failure:
      enabled: true
      max_elapsed_time: 10m

Architecture:

Apps
  │
  ▼
OTEL Collector
  │
  ├── Memory Limiter
  │
  ├── RAM Queue
  │
  ├── Persistent Queue (PVC)
  │
  └── Retry Engine
         │
         ▼
   Loki/Mimir/Tempo

What Engineers Should Remember

The two diagrams together teach the four most important OTEL outage concepts:

ConceptExplanation
sending_queueAbsorbs short outages in RAM
block_on_overflow=falseLose telemetry, protect applications
block_on_overflow=trueProtect telemetry, impact applications
file_storageSurvive long outages and collector restarts

If I were turning this into a BLU//SAS training infographic for SREs, I would add a fifth pillar:

memory_limiter

because in Kubernetes environments it is just as important as:

sending_queue
retry_on_failure
file_storage
block_on_overflow

for understanding real-world OpenTelemetry Collector resilience.

This is a sophisticated design that combines three OpenTelemetry Collector resiliency mechanisms:

  1. Failover Connector
  2. sending_queue
  3. file_storage persistent queue

and attempts to model outage behaviour mathematically.

Overall accuracy is approximately 8.5–9/10. The architecture is sound, but several of the numerical calculations and operational assumptions need qualification.

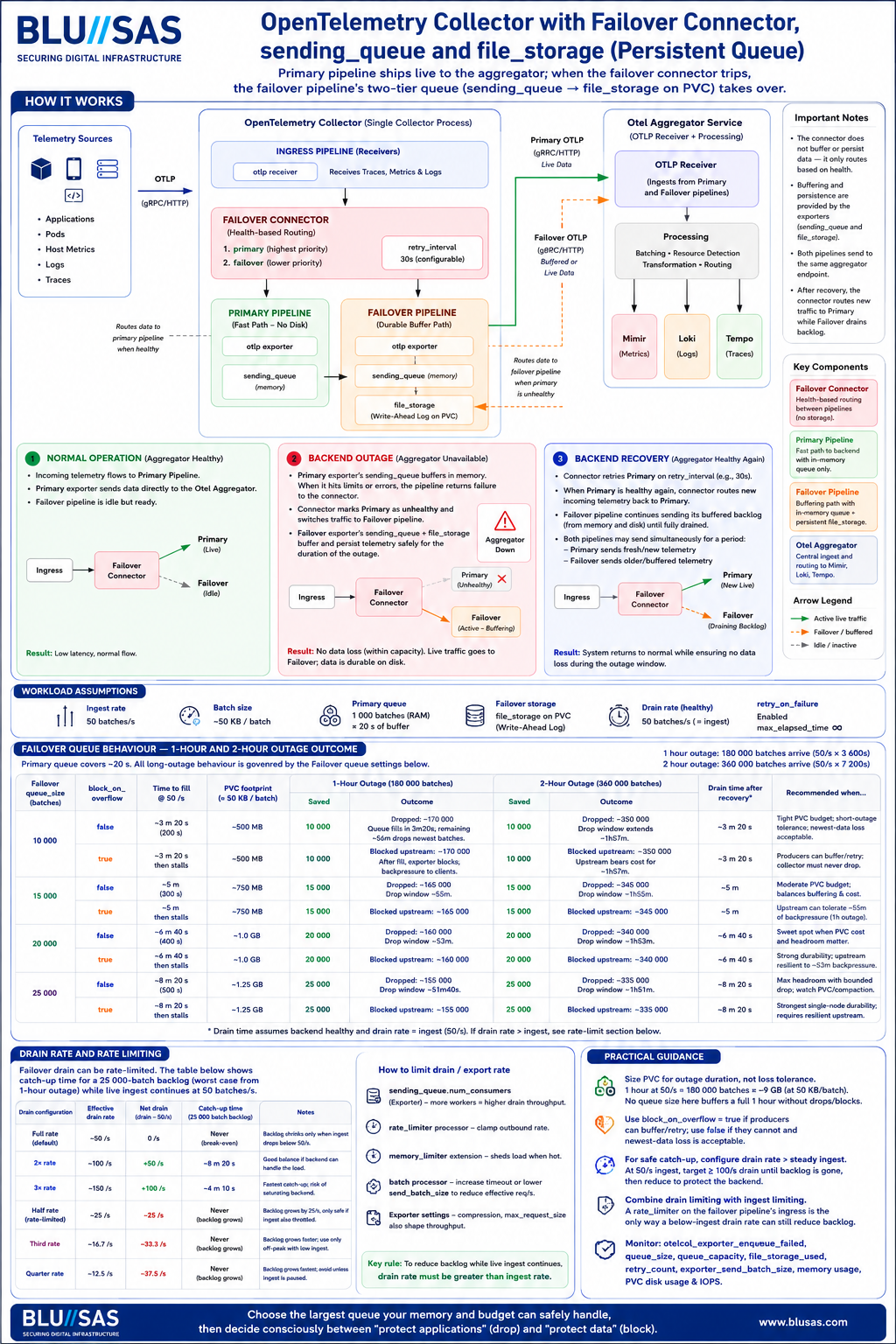

1. Architecture Verification

The architecture shown is:

Ingress
   │
   ▼
Failover Connector
   │
   ├─► Primary Pipeline
   │       ├─ sending_queue
   │       └─ OTLP Exporter
   │
   └─► Failover Pipeline
           ├─ sending_queue
           ├─ file_storage
           └─ OTLP Exporter

                 │
                 ▼

          OTel Aggregator
                 │
         Mimir Loki Tempo

This is valid.

The Failover Connector was designed specifically for:

Health-based routing

between exporter pipelines.

The diagram’s routing model is accurate.

2. Primary Queue Calculations

The text states:

Primary queue
1000 batches
50 batches/sec
≈20 seconds

Verification:

1000÷50=201000\div50=201000÷50=20

Correct.

3. Persistent Queue Fill Time

The document calculates:

10,000 batches

10000 / 50

10000÷50=20010000\div50=20010000÷50=200

200 seconds

≈3m20s

Correct.

15,000 batches

15000 / 50

15000÷50=30015000\div50=30015000÷50=300

300 seconds

≈5 minutes

Correct.

20,000 batches

20000 / 50

20000÷50=40020000\div50=40020000÷50=400

400 seconds

≈6m40s

Correct.

25,000 batches

25000 / 50

25000÷50=50025000\div50=50025000÷50=500

500 seconds

≈8m20s

Correct.

4. The Biggest Numerical Problem

The infographic repeatedly says:

1 hour outage
180,000 batches arrive

and

2 hour outage
360,000 batches arrive

Let’s verify.

1 hour:

3600 × 50

3600×50=1800003600\times50=1800003600×50=180000

Correct.

2 hours:

7200 × 50

7200×50=3600007200\times50=3600007200×50=360000

Correct.

The arithmetic is correct.

The operational implication is where it becomes misleading.

5. Queue Size Is Far Too Small

The infographic correctly concludes:

25,000 queue
cannot absorb
1 hour outage

Let’s verify.

Required:

180,000 batches

Available:

25,000 batches

Coverage:

25000 / 180000

≈13.9%

Only about:

8m20s

of outage protection.

Therefore:

1-hour outage

still loses:

155,000 batches

Correct.

The infographic correctly identifies this.

6. PVC Footprint Estimates

The document assumes:

50 KB / batch

Let’s verify.

10k Queue

10000 × 50KB

≈500 MB

Correct.

15k Queue

15000 × 50KB

≈750 MB

Correct.

20k Queue

≈1 GB

Correct.

25k Queue

≈1.25 GB

Correct.

However:

This is where reality becomes dangerous.

The infographic assumes:

50 KB

fixed batch size.

OTEL batches are not fixed.

Actual batch sizes may vary by:

10×
100×
1000×

depending on:

  • metrics
  • logs
  • traces
  • exemplars
  • span events

Therefore:

25k queue
≈1.25 GB

should be treated as:

illustrative only

not predictive.

7. Drain-Time Section

This is where I disagree most strongly.

The infographic states:

Drain rate 50/s
Ingest 50/s

backlog never shrinks

This is mathematically correct.

If:

Drain = 50
Ingest = 50

Net:

50 - 50 = 0

Correct.

It then states:

Drain = 100/s

Net drain = 50/s

Correct.

A 25k backlog would clear in:

25000 / 50

25000÷50=50025000\div50=50025000÷50=500

≈8m20s

Correct.

8. Hidden Assumption

The drain model assumes:

Aggregator

can suddenly accept:

100 batches/sec

after recovery.

In reality:

Most outages are caused by:

  • overloaded backend
  • overloaded storage
  • overloaded network

Therefore:

doubling drain rate

may simply recreate the outage.

This isn’t wrong.

It is just optimistic.

9. Failover Connector Behaviour

This section is mostly correct.

Normal:

Primary healthy

↓

Primary receives traffic

Failover idle.

Outage:

Primary unhealthy

↓

Connector routes to Failover

Correct.

Recovery:

Primary healthy again

↓

Connector returns new traffic

Correct.

However:

The actual Failover Connector is not instantaneous.

Recovery depends on:

retry_interval:

and health checks.

There can be hysteresis and delays.

The diagram simplifies this.

10. Missing Production Factors

The largest omissions are:

Memory Limiter

Missing:

processors:
  memory_limiter:

This is critical.

Many queues never reach capacity because:

memory_limiter

starts rejecting telemetry first.

PVC IOPS

The infographic treats:

disk queue

as infinite-speed storage.

In reality:

file_storage

depends heavily on:

  • PVC latency
  • IOPS
  • filesystem

A slow PVC can become the bottleneck.

OOM Risk

Large queues increase:

RAM

and

GC pressure

inside the Collector.

Not discussed.

Retry Expiry

The text uses:

max_elapsed_time = ∞

This is uncommon.

Most production systems have:

5m
10m
30m

limits.

With finite retry windows:

queued data

can still be discarded before the queue fills.

Final Verdict

Architecture

10/10

The Failover Connector + sending_queue + file_storage design is valid and follows recommended OpenTelemetry patterns.

Mathematics

9.5/10

Almost all calculations are correct.

Queue fill times, outage sizes, drain rates and PVC footprints check out.

Operational Realism

8/10

The model assumes:

  • constant 50 batches/sec
  • fixed 50 KB batches
  • healthy backend after recovery
  • unlimited disk performance
  • no memory limiter
  • infinite retry duration

Real clusters rarely satisfy all those assumptions.

Overall

9/10

This is a strong Staff-level explanation of OpenTelemetry failover architecture and queue mechanics. For BLU//SAS training material, I would add one final box titled:

Production Caveats

covering:

  • memory_limiter
  • PVC IOPS
  • variable batch size
  • retry expiry
  • backend recovery capacity
  • OOM protection

With those additions, the design would be close to a complete real-world OpenTelemetry Collector resiliency reference.
